Specifications

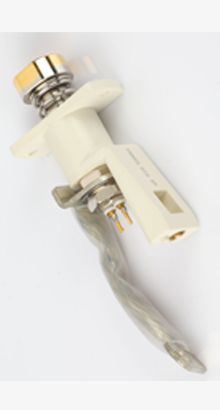

Transverse Needle Sampling ProbeGP-10610

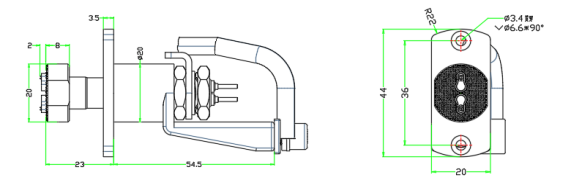

Size:79.5*44*20mm
Main Material: Beryllium copper
Applicable:Square case power battery
Working Current:0~60A
Fixture Resistance:≤1mΩ
Temperature:≤120℃
Elastic Parameters:The pressure is 15N±10% when the voltage needle is compressed 2 mm and 60N±10%  when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
