Specifications
Two-pin Sampling Probe

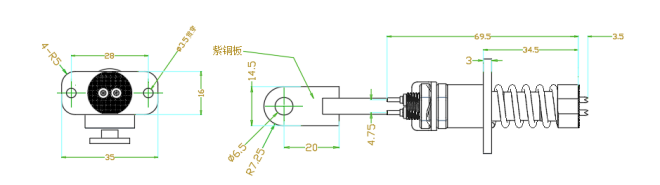

Size:73*35*16mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~80A
Fixture Resistance:≤0.5mΩ
Temperature: ≤100℃
Elastic Parameters: The pressure is 8N when the voltage needle is compressed 1.5 mm  and 60N ± 10% when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
