Specifications
Double Spring Knife Probe

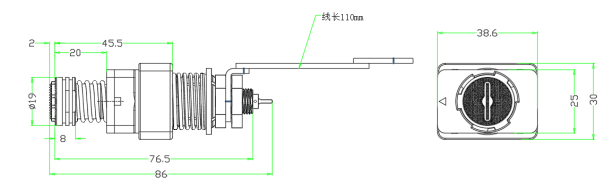

Size:86*38.6*30mm
Main Material:Beryllium copper
Main Material: Beryllium copper
Applicable:Square case power battery
Working Current:0~120A
Fixture Resistance:≤0.1mΩ
Temperature:≤100℃
Elastic Parameters:The pressure is 15N when the voltage needle is compressed 1.5 mm and 75N ± 10% when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
