Specifications
Two-pin Sampling ProbeGP-11257

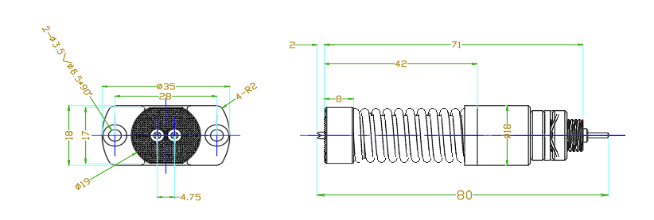

Size:80*35*18mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~120A
Fixture Resistance:≤0.5mΩ
Temperature:≤100℃
Elastic Parameters: The pressure is 5N when the voltage needle is compressed 2 mm and 75N ± 10% when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
