Specifications
Knife Press Block Type ProbeGP-11543

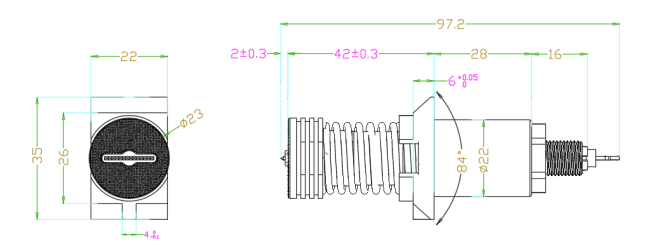

Size:97.2*35*22mm
Main Material: Beryllium copper
Applicable:Square case power battery
Working Current:0~225A
Fixture Resistance:≤0.5mΩ
Temperature:≤120℃
Elastic Parameters: The pressure is 8N~10N when the voltage needle is compressed 2 mm, and 100N ± 10% when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
