Specifications

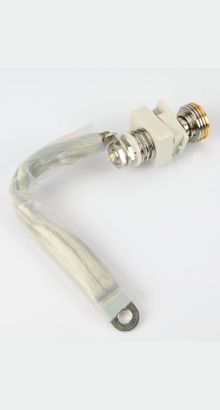

Double Spring Knife ProbeGP-11125

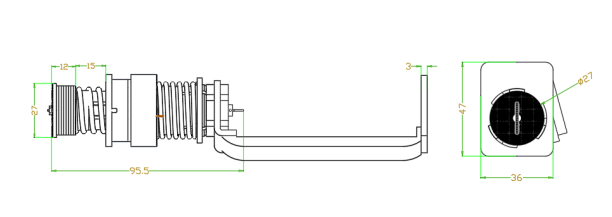

Size:95.5*47*36mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~300A
Fixture Resistance:≤0.3mΩ
Temperature:≤100℃
 Elastic Parameters:The pressure is 15N when the voltage needle is compressed 2 mm, and 110N ± 10% when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
