东莞市旭锐精密科技有限公司
Specifications
Knife Probe

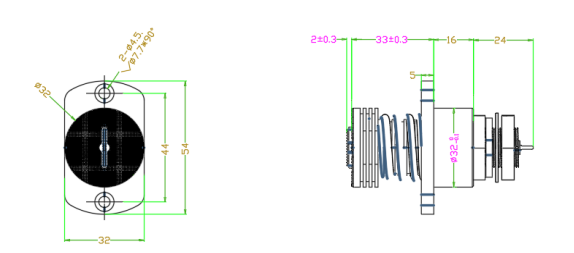

Size: 75*54*32mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~300A
Fixture Resistance:≤0.1mΩ
Temperature: ≤120℃
 Elastic Parameters:The pressure is 15N±10% when the voltage needle is compressed 2 mm,  and 110N ± 10% when the current needle is compressed 5mm.
Plating: Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.



Application
