Specifications
Two-pin Sampling Probe

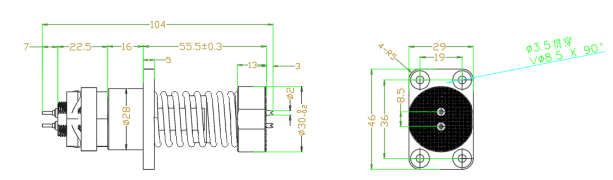

Size:104*46*29mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~400A
Fixture Resistance:≤0.5mΩ
Temperature:≤100℃
Elastic Parameters:The pressure is 15N when the voltage needle is compressed 3 mm, and 100N ± 10% when the current needle is compressed 5mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
