Specifications

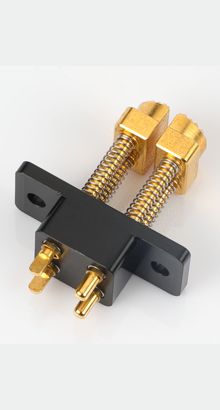

Semicircular Probe AssemblyGP-11044

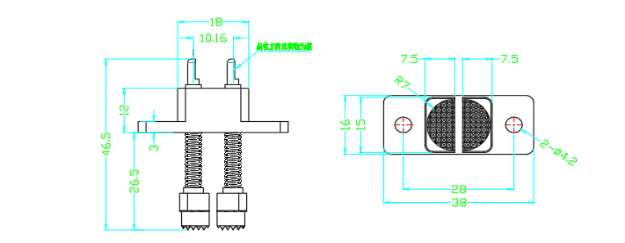

Size: 46.5*38*16mm
Main Material: Beryllium copper
Applicable: Square case power battery
Working Current: 0~10A
Fixture Resistance:≤5mΩ
Temperature:≤100℃
Elastic Parameters:The pressure can reach 25 ~ 30N

when the current needle is compressed 5 mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.



Application
