Specifications

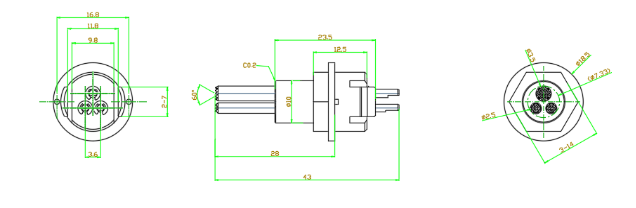

Three-pin Probe AssemblyGP-11077
Size:φ18.5*43mm
Main Material: Beryllium copper
Applicable:Square case power battery
Working Current:0~6A
Fixture Resistance: ≤10mΩ
Temperature:≤100℃
Elastic Parameters:The pressure can reach 1.2KG~1.4KG,when the current needle is compressed 5 mm.
Plating: Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.
