Specifications
Housing Probe AssemblyGP-11476

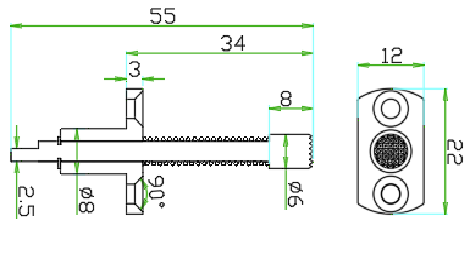

Size:55*22*12mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~10A
Fixture Resistance:≤5mΩ
Temperature:≤100℃
Elastic Parameters:The pressure can reach 1KG~1.5KG,when the current needle is compressed 5 mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.



Application
