Specifications
Two-needle probe assembly

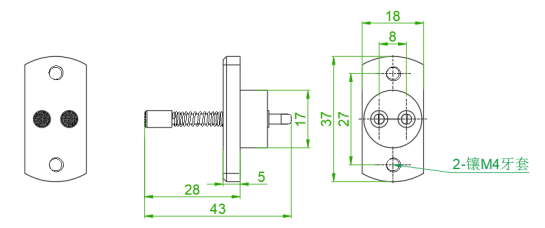

Size:43*37*18mm
Main Material:Beryllium copper
Applicable:Square case power battery
Working Current:0~6A
Fixture Resistance:≤5mΩ
Temperature: ≤100℃
Elastic Parameters: The pressure can reach 4N~6N ,when the current needle is compressed 5 mm.
Plating:Nickel plating on the whole surface of the probe, nickel plating on the tip of the current  needle before gold plating,plating: Ni ≥2um, AU ≥0.2 um.



Application
