Specifications
3A Current ClipGP-10449

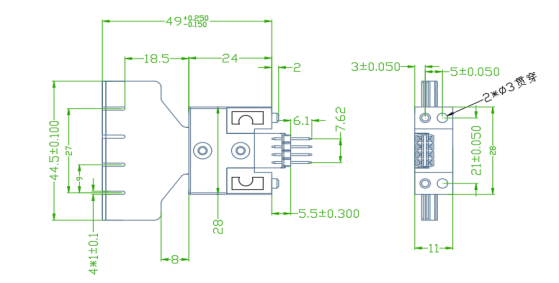

Size: 60.6*44.5*11mm
Main Material:Flexible Pack Power Battery
Applicable:Square case power battery
Working Current:0~3A
Fixture Resistance:≤5mΩ
Temperature: ≤70℃
Elastic Parameters:The pressure can reach 1.5KG±10% ,when the current needle is compressed 3 mm.
Electroplating: Work part of the surface gold-plated 8 um, the rest of the gold-plated 2um.
