Specifications
60A Current ClipGP-10606

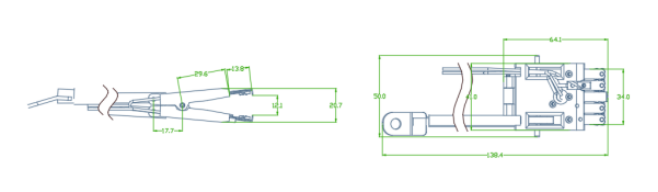

Size:138.4*50*20.7mm
Main Material:Flexible Pack Power Battery
Applicable:Square case power battery
Working Current:0~60A
Fixture Resistance:≤1mΩ
Temperature:≤120℃
Elastic Parameters:The pressure can reach 39N±5N , when the current needle is compressed 4 mm.
Plating:Integral nickel plating, front head gold plating treatment, coating NI (1um) AU (0.2-0.5 um) .



Application
