Specifications
300A Current

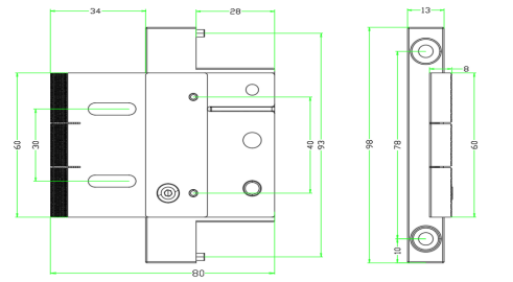

Size:98*80*13mm
Main Material:Flexible Pack Power Battery
Applicable: Square case power battery
Working Current:0~300A
Fixture Resistance:≤0.8mΩ
Temperature:≤120℃
Elastic Parameters:The pressure can reach 70~100N ,when the current needle is compressed 5.5~6.5 mm.
Plating: Integral nickel plating, front head gold plating treatment, coating NI (1um) AU (0.2-0.5 um) .
